A+ / A

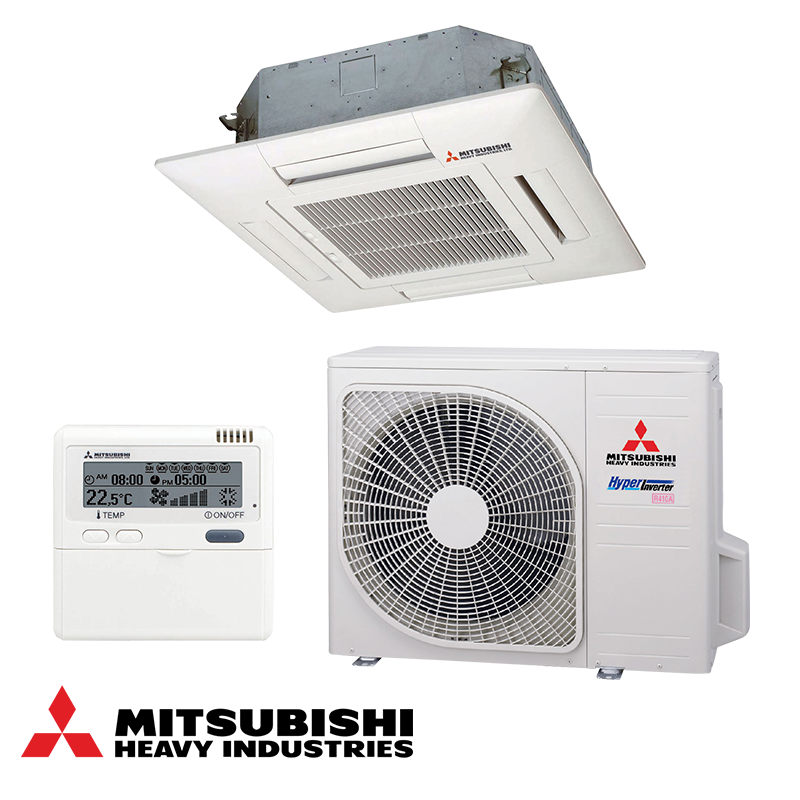

Cassette air conditioner Mitsubishi Heavy Industries FDTC50VH + SRC50ZSX-W

On request Code: 2550095

18000 BTUcapacity
up to 33 m²for a room of
down to −20 °Cheats at outdoor temp.
A+ / Aenergy class
36 monthswarranty

Installation within 24 hours in Varna
Delivery across Bulgaria
36-month warranty
Free consultation

Is it right for your room?

Моделът е за помещение до 33 м². Въведете площта на стаята.

Order in 1 clickLeave your phone number — we'll call you and sort out all the details

Specifications

Main

Brand: Mitsubishi Heavy
BTU: 18000
Area (m²)Approximate, for standard ceiling height and insulation.: 33 кв. м
Cooling capacityMin. / rated / max.: 1.1 / 5.0 / 5.6 kW
Heating capacityMin. / rated / max.: 0.6 / 5.4 / 6.3 kW
Warranty: 36 months

Efficiency

Air conditioner energy classClass for cooling / heating.: A+ / A
SEERSeasonal cooling efficiency — the higher it is, the less electricity it uses.: 5.99
SCOPSeasonal heating efficiency: how many kWh of heat from 1 kWh of electricity.: 3.85
COPInstant heating efficiency (under standard conditions).: 3.72
Power consumption: 1–2 kW

Operating range

Cooling temp.Outdoor temperatures at which the air conditioner cools.: -15°C ~ +46°C
Heating temp.Outdoor temperatures at which the air conditioner heats.: -20°C ~ +24°C

Technical data

Refrigerant: R-410A
Power supply: 1~/50/220-240
Indoor noise (dB): 42 / 36 / 30 dB(A)
Outdoor noise (dB): 50 dB(A)
Indoor dimensions: 248 × 570 × 570 mm
Outdoor dimensions: 640 × 800 × 290 mm

Quick filters # Cassette type # Professional systems # Климатици за отопление # Всички Mitsubishi Heavy # Климатици 18000 BTU

Installation and delivery

Стандартен монтаж — 180,00 €

Up to 3 m of copper piping
Installation materials
System vacuuming
Commissioning

Choose “Air conditioner + installation” when ordering. Longer piping or non-standard installation — we'll clarify by phone.

Installation in Varna

Delivery across Bulgaria

Every shipment is insured. Terms and timeframes are described on the delivery page.

Delivery terms

Not sure about your choice?

The consultation is free: we'll help you pick the capacity based on room area, insulation and how you'll use the air conditioner.

+359 886 392 424

Description

Mitsubishi Heavy · Mitsubishi Heavy FDTC — cassette air conditioners series

Compact four-way cassette for suspended ceilings

Mitsubishi Heavy Industries FDTC50VH + SRC50ZSX-W is a cassette air conditioner from the Mitsubishi Heavy FDTC — cassette air conditioners series with a capacity of 18,000 BTU — suitable for rooms up to 33 m².

18,000 BTUcapacity
up to 33 m²room size
A+ / Aenergy class
down to -20 °Coutdoor operation
from 30 dBnoise level

Why Mitsubishi Heavy Industries FDTC50VH + SRC50ZSX-W

Four-way air distribution

The cassette installs in a suspended ceiling and delivers air in four directions.

Individual louver control

Each louver can be set to a different angle for optimal temperature in every part of the room.

Draft-prevention panel

The new-generation FDTC can be fitted with a panel that keeps a direct cold or hot airstream away from people.

Good Design Award

The new-generation FDTC received the "Good Design Award 2016".

Heating in cold weather

Heats at outdoor temperatures down to -15°C, and down to -20°C with ZSX outdoor units.

What room is it suitable for?

For rooms up to 33 m² — for example, a large living room or studio. For high ceilings, lots of glazing or a south-facing room, choose a higher capacity — we will advise you free of charge.

Energy efficiency and running costs

Seasonal cooling efficiency SEER 5.99, heating SCOP 3.85 — energy class A+ / A. Refrigerant R410A. Warranty 36 months.

Video about Mitsubishi Heavy (in Bulgarian)

Mitsubishi Heavy Industries Air Conditioning – японско качество, иновации и комфорт без компромиси · MAAT Engineering Ltd. (МЕ)

Frequently asked questions

Where is the FDTC cassette air conditioner installed?

In a suspended ceiling — only the decorative panel stays visible, and air is delivered in four directions.

Can the FDTC cassette be part of a multi-split system?

Yes, FDTC cassettes are among the compatible indoor units for Mitsubishi Heavy SCM multi-split outdoor units.

What room size is Mitsubishi Heavy Industries FDTC50VH + SRC50ZSX-W suitable for?

For rooms up to 33 m² with a standard ceiling height. For larger rooms, lots of windows or attic spaces, we recommend a higher capacity.
