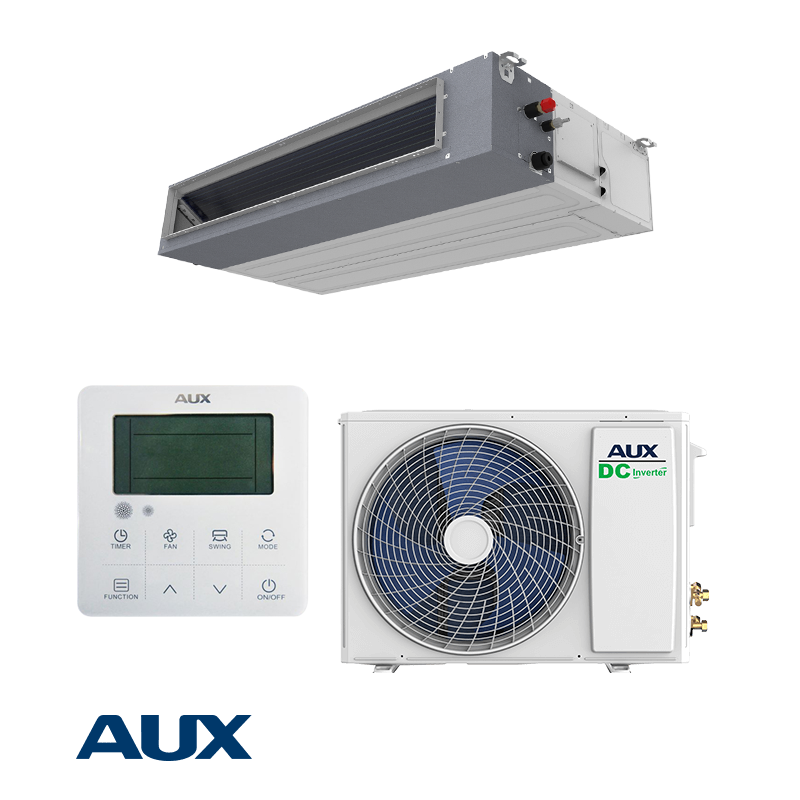

Ducted air conditioner AUX AUMD-H12/NDR3HM2B + AL-H12/NDR3HB2(U)

In stock Code: 25201079

12000 BTUcapacity
up to 24 m²for a room of
down to −15 °Cheats at outdoor temp.
36 monthswarranty

Installation within 24 hours in Varna
Delivery across Bulgaria
36-month warranty
Free consultation

Is it right for your room?

Моделът е за помещение до 24 м². Въведете площта на стаята.

Order in 1 clickLeave your phone number — we'll call you and sort out all the details

Specifications

Main

Brand: AUX
BTU: 12000
Area (m²)Approximate, for standard ceiling height and insulation.: 24 кв. м
Cooling capacityMin. / rated / max.: 1.35 / 3.52 / 4.40 kW
Heating capacityMin. / rated / max.: 1.24 / 3.81 / 5.30 kW
Warranty: 36 months

Efficiency

SEERSeasonal cooling efficiency — the higher it is, the less electricity it uses.: 6.1
SCOPSeasonal heating efficiency: how many kWh of heat from 1 kWh of electricity.: 4
COPInstant heating efficiency (under standard conditions).: 3.73
Power consumption: 1–2 kW

Operating range

Cooling temp.Outdoor temperatures at which the air conditioner cools.: -15°C ~ +52°C
Heating temp.Outdoor temperatures at which the air conditioner heats.: -15°C ~ +24°C

Technical data

Refrigerant: R-32
Power supply: 1~/50/220-240
Indoor noise (dB): 37 / 34 / 32 dB(A)
Outdoor noise (dB): 54 dB(A)
Indoor dimensions: 245 × 700 × 700 mm
Outdoor dimensions: 536 × 709 × 280 mm

Quick filters # Ducted type # Professional systems # All AUX # Климатици 12000 BTU

Installation and delivery

Standard installation — 150,00 €

Up to 3 m of copper piping
Installation materials
System vacuuming
Commissioning

Choose “Air conditioner + installation” when ordering. Longer piping or non-standard installation — we'll clarify by phone.

Installation in Varna

Delivery across Bulgaria

Every shipment is insured. Terms and timeframes are described on the delivery page.

Delivery terms

Not sure about your choice?

The consultation is free: we'll help you pick the capacity based on room area, insulation and how you'll use the air conditioner.

+359 886 392 424

Description

AUX · AUX AUMD ducted air conditioners series

Concealed ceiling installation for "invisible" climate control

AUX AUMD-H12/NDR3HM2B + AL-H12/NDR3HB2(U) is a ducted air conditioner from the AUX AUMD ducted air conditioners series with a capacity of 12,000 BTU — suitable for rooms up to 24 m².

12,000 BTUcapacity
up to 24 m²room size
down to -15 °Coutdoor operation
from 32 dBnoise level

Why AUX AUMD-H12/NDR3HM2B + AL-H12/NDR3HB2(U)

Concealed installation

The unit is installed in the ceiling and doesn't disrupt the interior.

Even distribution

Heated or cooled air is distributed evenly through ductwork.

Cooling up to 52 °C

The cooling operating range is -15 to 52 °C outdoor temperature.

Heating down to -15 °C

The models heat at outdoor temperatures down to -15 °C.

For commercial spaces

Suitable for hotels, offices, sports halls, and conference rooms.

What room is it suitable for?

For rooms up to 24 m² — for example, a living room or large bedroom. For high ceilings, lots of glazing or a south-facing room, choose a higher capacity — we will advise you free of charge.

Energy efficiency and running costs

Seasonal cooling efficiency SEER 6.1, heating SCOP 4. Refrigerant R32. Warranty 36 months.

Video about AUX (in Bulgarian)

Климатици AUX · Биттел ЕООД

Frequently asked questions

What kind of premises is a ducted air conditioner suited for?

Commercial spaces, hotels, sports halls and conference rooms, offices, and administrative buildings.

Is a ventilation system required?

Ducted air conditioners are suited for rooms with ductwork through which the air is supplied.

What room size is AUX AUMD-H12/NDR3HM2B + AL-H12/NDR3HB2(U) suitable for?

For rooms up to 24 m² with a standard ceiling height. For larger rooms, lots of windows or attic spaces, we recommend a higher capacity.

Installation within 24 hours in Varna

Order AUX AUMD-H12/NDR3HM2B + AL-H12/NDR3HB2(U) with professional installation by our team — free consultation and site survey, delivery across Bulgaria.
